HaluStrip Duo NEW
ORDER CODE: HALUSTRIPDUOA dual layer LED strip that seamlessly integrates lighting and video capabilities into a modular design.

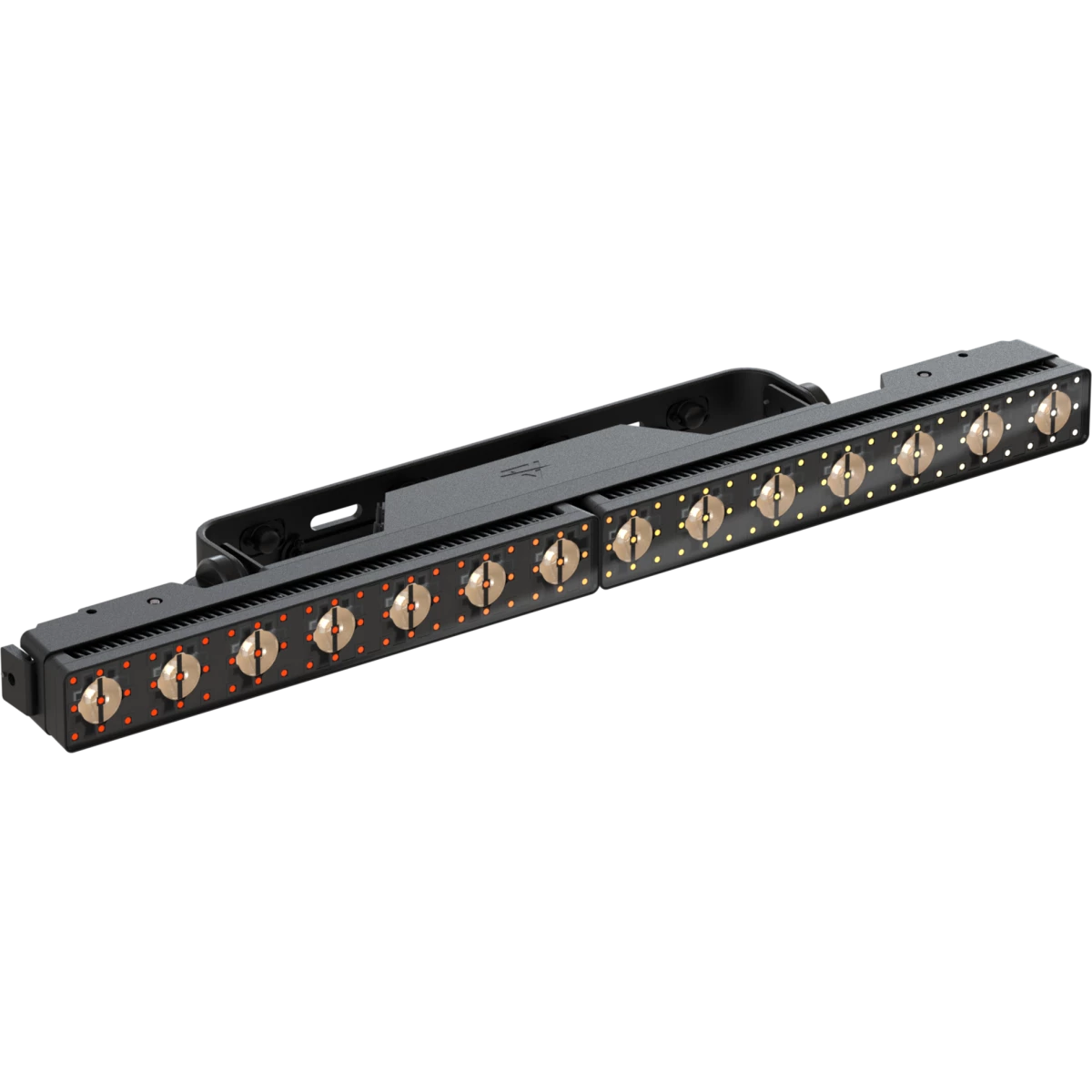

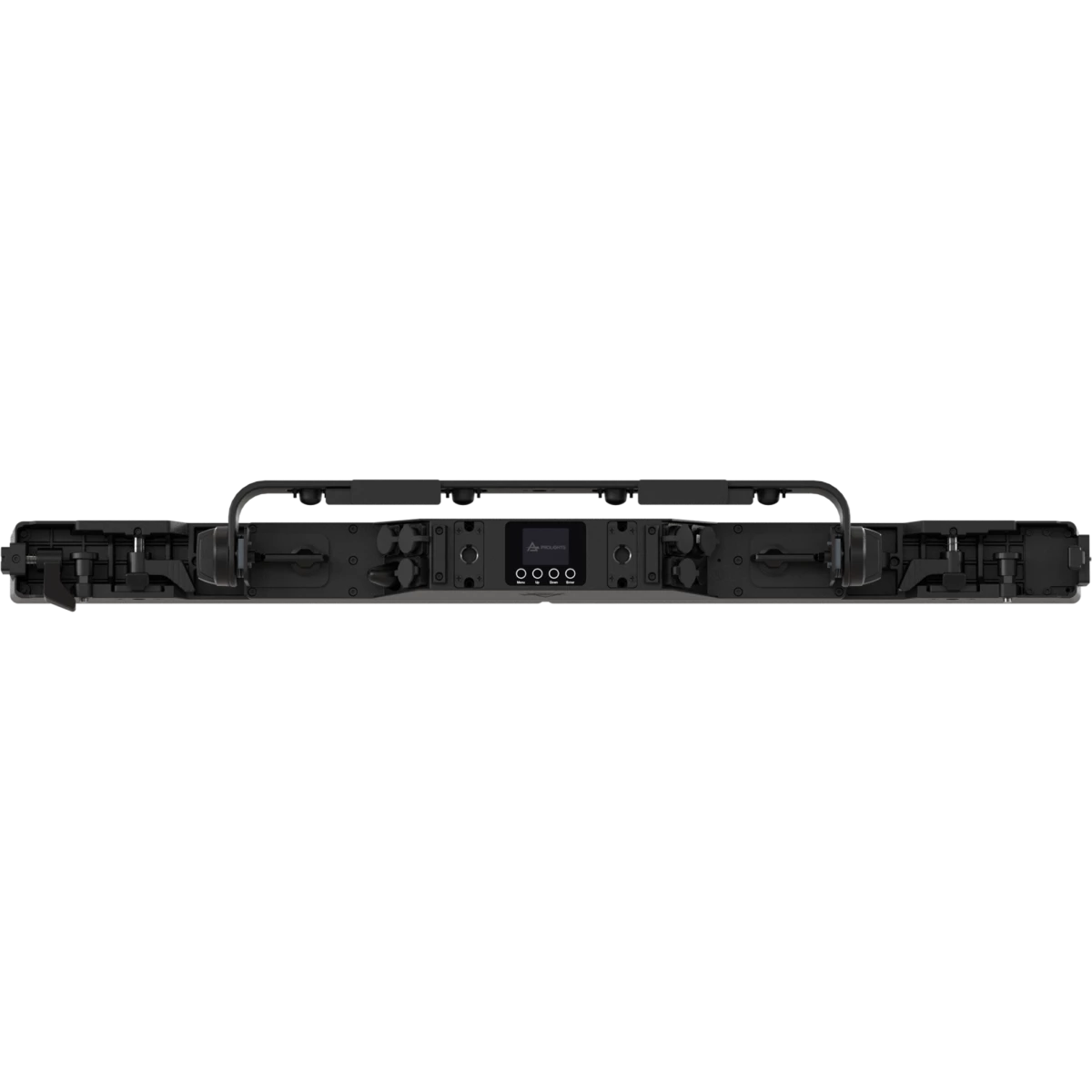

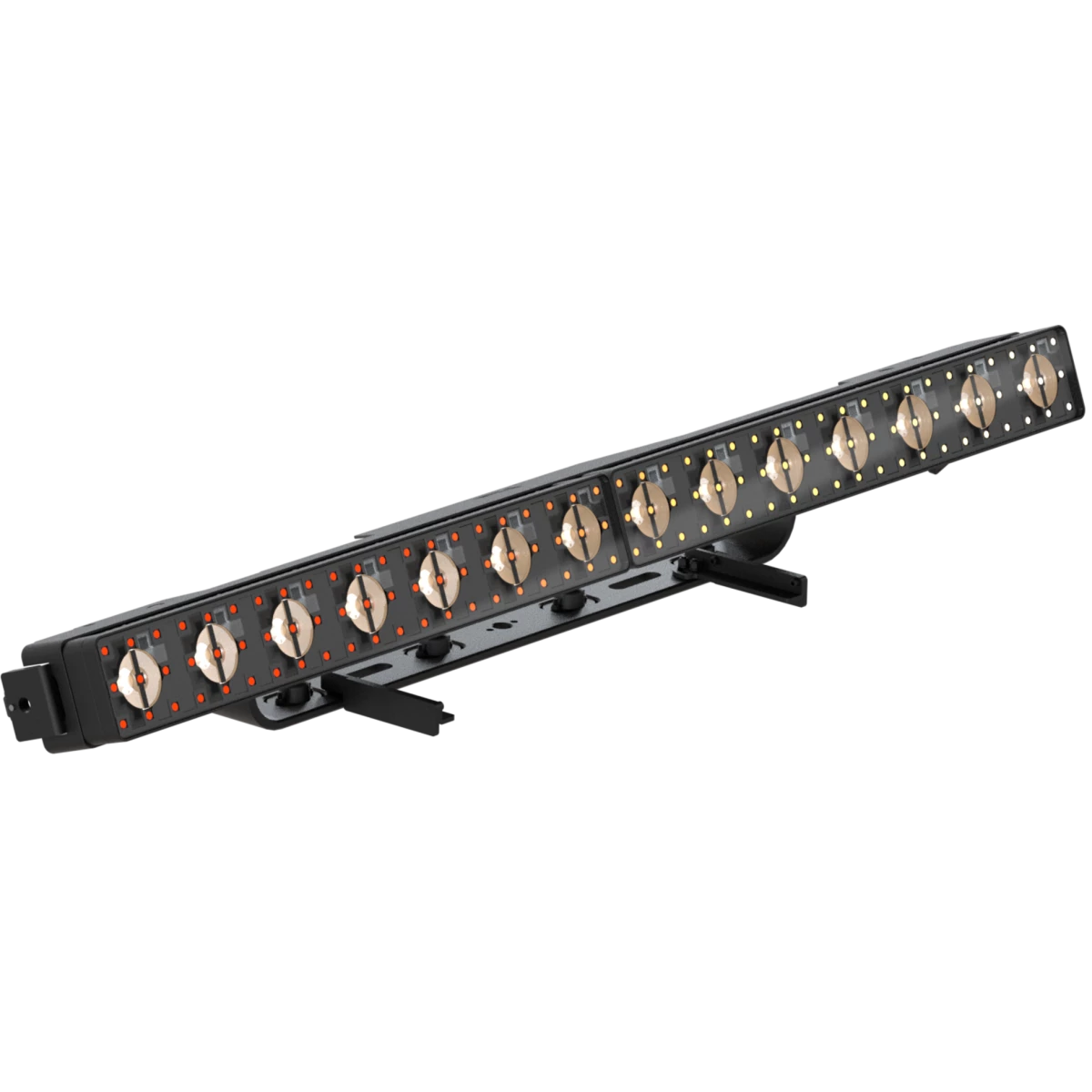

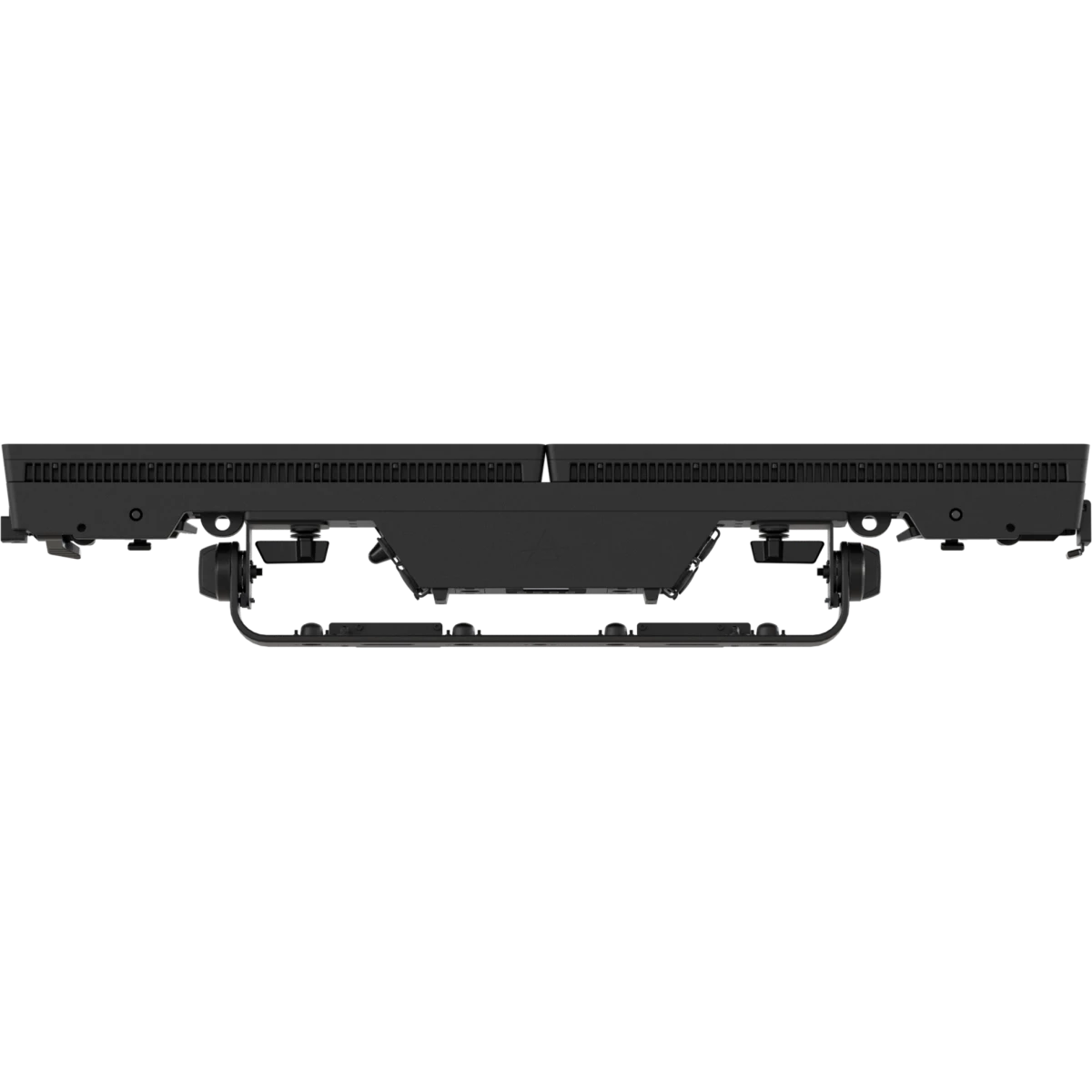

The HaluStrip DUO is a dual layer LED strip that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside low-resolution video pixel capabilities, making it a versatile tool for creative lighting designs.
The fixture features 14 warm white 2700K LEDs with a 4° beam angle, delivering intense, defined beams that cut through space. Complementing this is a secondary layer of 3x42 RGBWW pixels, controllable via Art-Net, sACN, or Kling-Net for dynamic video effects and pixel mapping.
Main features:
- 200W: 14x2700K 4° Beam + 3x42 RGBWW Pixels
- Equipped with built-in retractable feet for floor positioning
- Seamless modular frame for flat, hanging / ground, on yoke configurations
- DMX, RDM, sACN, Art-net and RDMnet protocols supported
- Available optional optics for beam LEDs - 12°, 24°
GALLERY
Technical specifications
- Light source: 1 x 14 4° 2700K LEDs + 3 x 42 120° RGB+WW LEDs
- Luminous flux: 4'044 lm (total) @Full
- Luminous flux: 3'871 lm (beam layer) | 3'114 lm (pixel layer) @Full
- Lux: 7'673lx @5 m full
- CRI: (beam layer) > 81,6 @2700K; (pixel layer) 92,2 @3200K; 90 @5600K
- Source life expectancy: > 30.000 h
- Beam angle: (Beams) 4,9°; (Pixels) 111,5°
- Field angle: (Beams) 7,4°; (Pixels) 151,3°
- Additional optics: available optional optics for beam LEDs 12°, 24°
- Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
- Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX (optional)
- DMX channels: from 12 channels to 518channel
- Pixel control: pixel2pixel control
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible
- IP rating: IP65 for temporary outdoor application
- Cooling: natural convection cooling
- Dimensions (WxHxD): 1000 x 71 x 183mm / 39.37''x2.8''x7.2''
- Weight: 8kg / 17.64lbs
