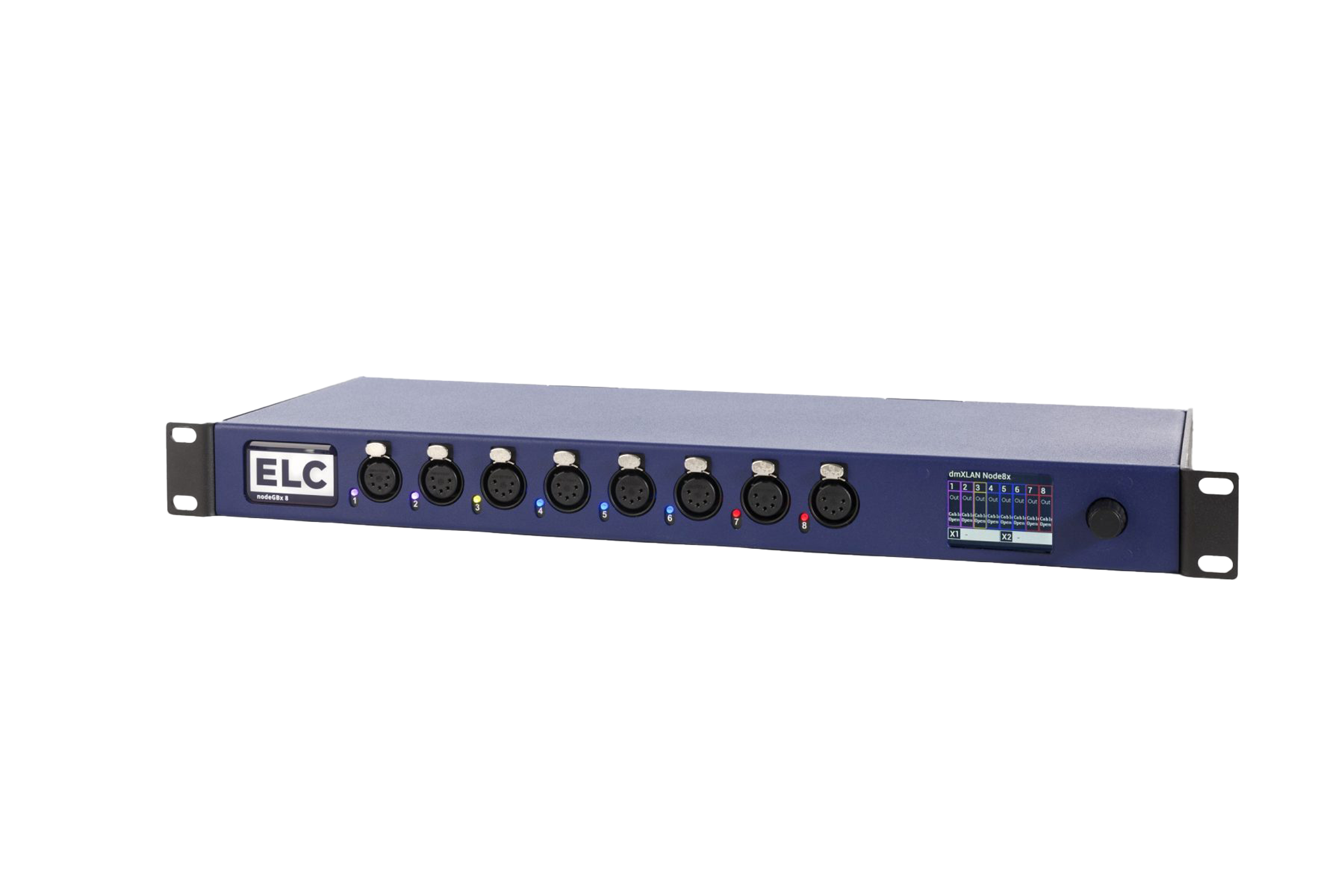

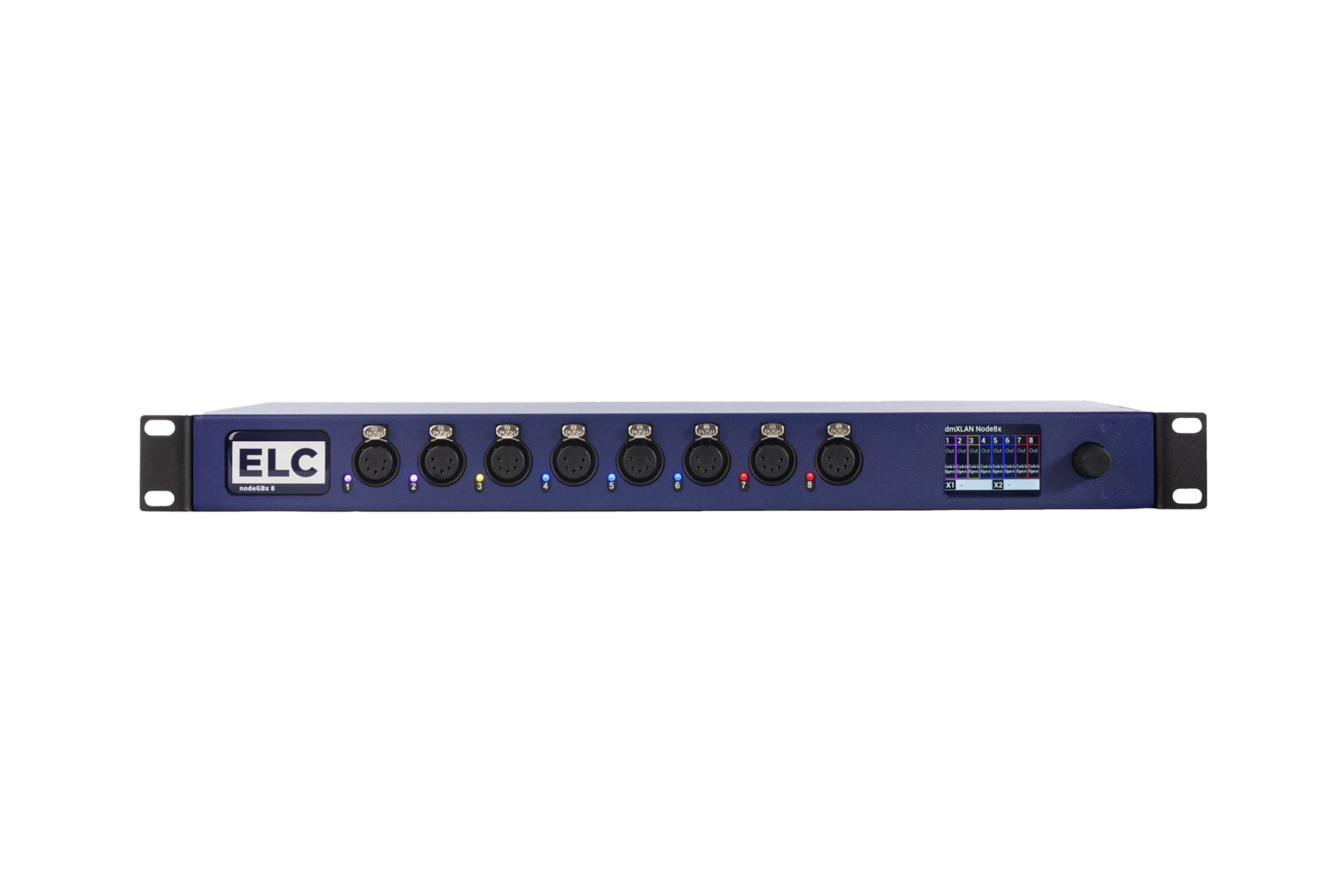

DMXLAN nodeGBx 8
ORDER CODE: DLN8GBXA versatile 8-port DMX/RDM node with a dual Gigabit port switch, offering data splitting, merging, and softpatching.
The dmXLAN nodeGBx 8 comes in two variations: DLN8GBX (with user interface) and DLN8GBXSL (slave operation). Both nodes offer 8 fully programmable, isolated DMX ports and a dual Gigabit port switch.
Functionality includes data splitting, merging, softpatching, and backup when programmed with ELC's dmXLAN software. Every DMX port features a programmable RGB LED indicator, and the output is continuously measured to detect changes and errors, which are shown on the node's display and in the dmXLAN software.
The system supports full DMX redundancy by allowing the end of a DMX run to be fed back into a port configured for backup, ensuring a smooth and extremely fast takeover in case of any failure in the DMX line.
Main features:
- 8 DMX Ports: 8 bi-directional, RDM compatible DMX ports on the front panel.
- Protocol Support: Supports sACN, Art-Net & Shownet for wide compatibility.
- Advanced Merging: DMX output supports normal, HTP, Priority merging, and channel-by-channel softpatch.
- DMX Redundancy: Loop DMX back to another port for failover backup with virtually no glitches.
- Local & Remote Control: Local control via color touchscreen and remote programming/monitoring with dmXLAN software.
- Active Output Measurement: Continuously measures DMX output and reports errors.
GALLERY
Technical specifications
- 8 Bi-directional DMX ports (front)
- Dual Gigabit Ethernet port
- sACN
- Art-Net
- Shownet
- RDM compatible
- Data splitting, merging, softpatching
- DMX redundancy/backup
- RGB LED indicator per port
- Color touchscreen with rotary encoder
- dmXLAN software
