Cluster Evo Series NEW

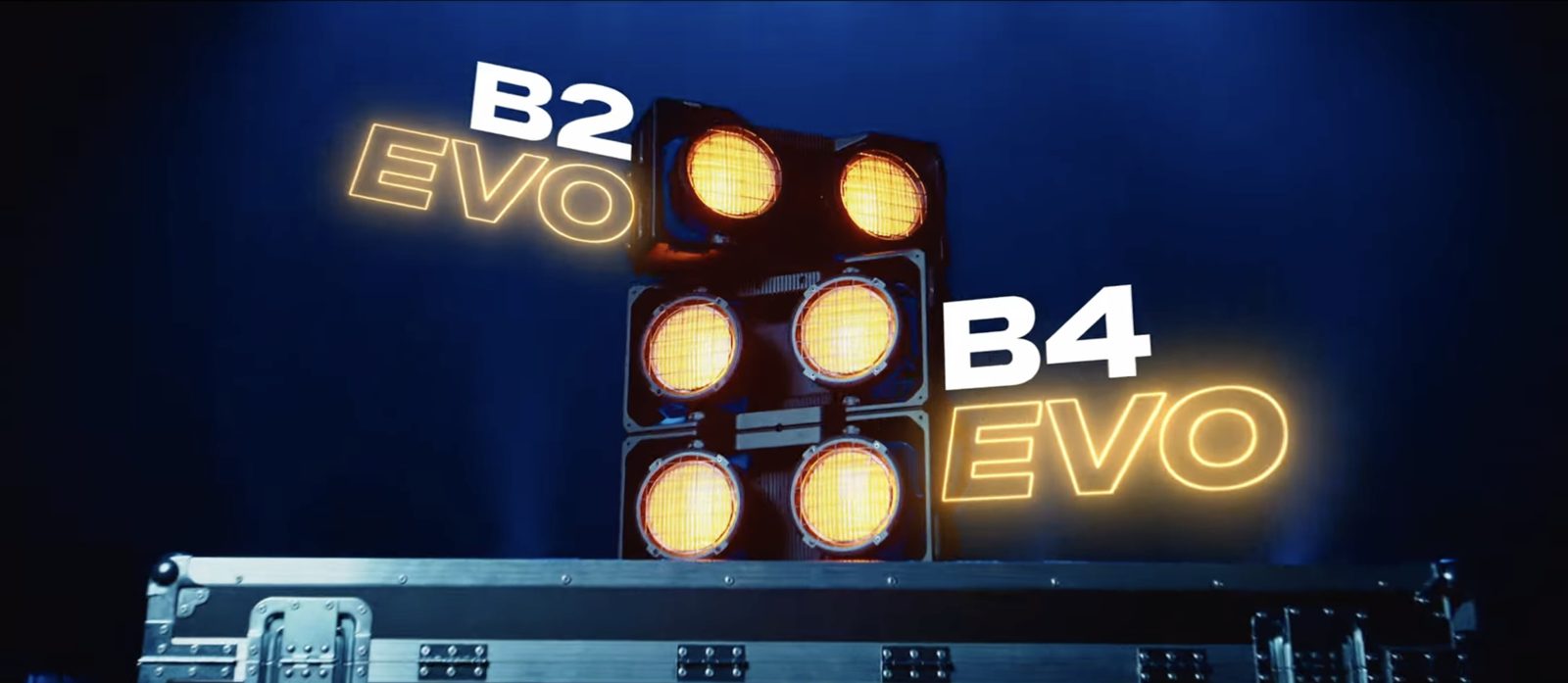

SERIES: CLUSTER B2 EVO · CLUSTER B4 EVOThe classic tungsten blinder look, reborn as a full-colour RGBA+WW LED fixture — with up to 350% more power and up to 20% less weight.

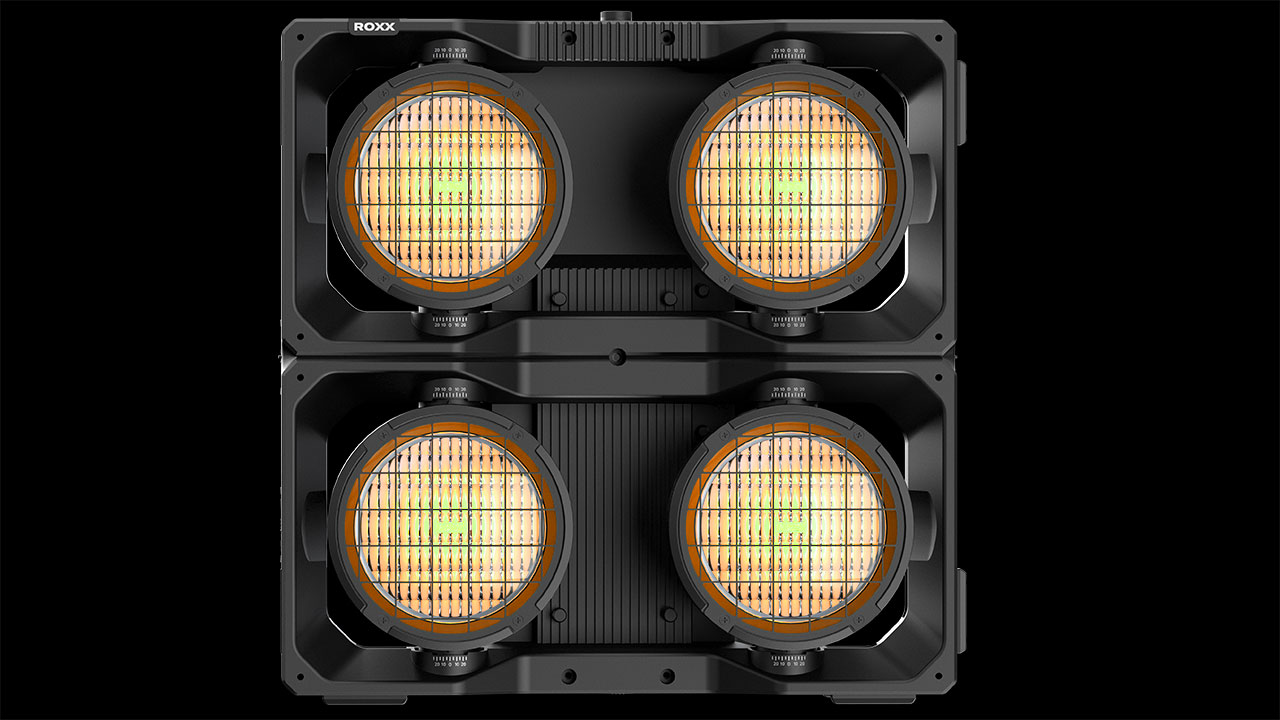

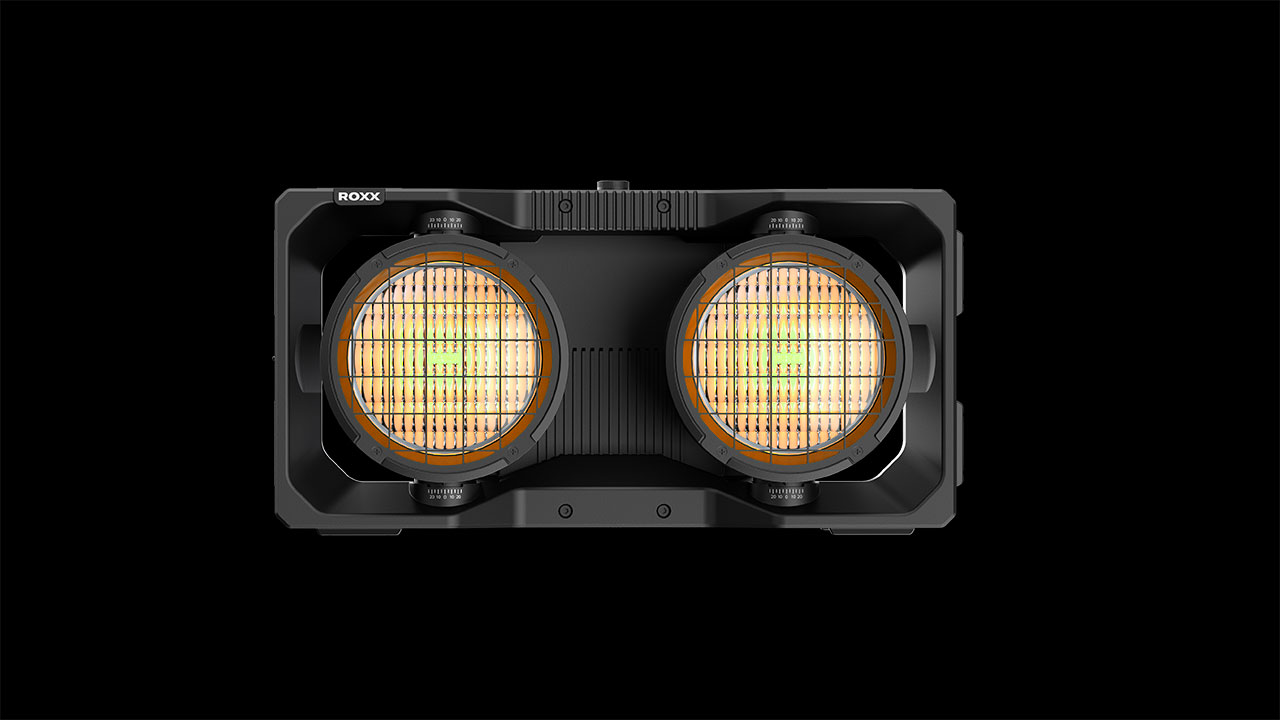

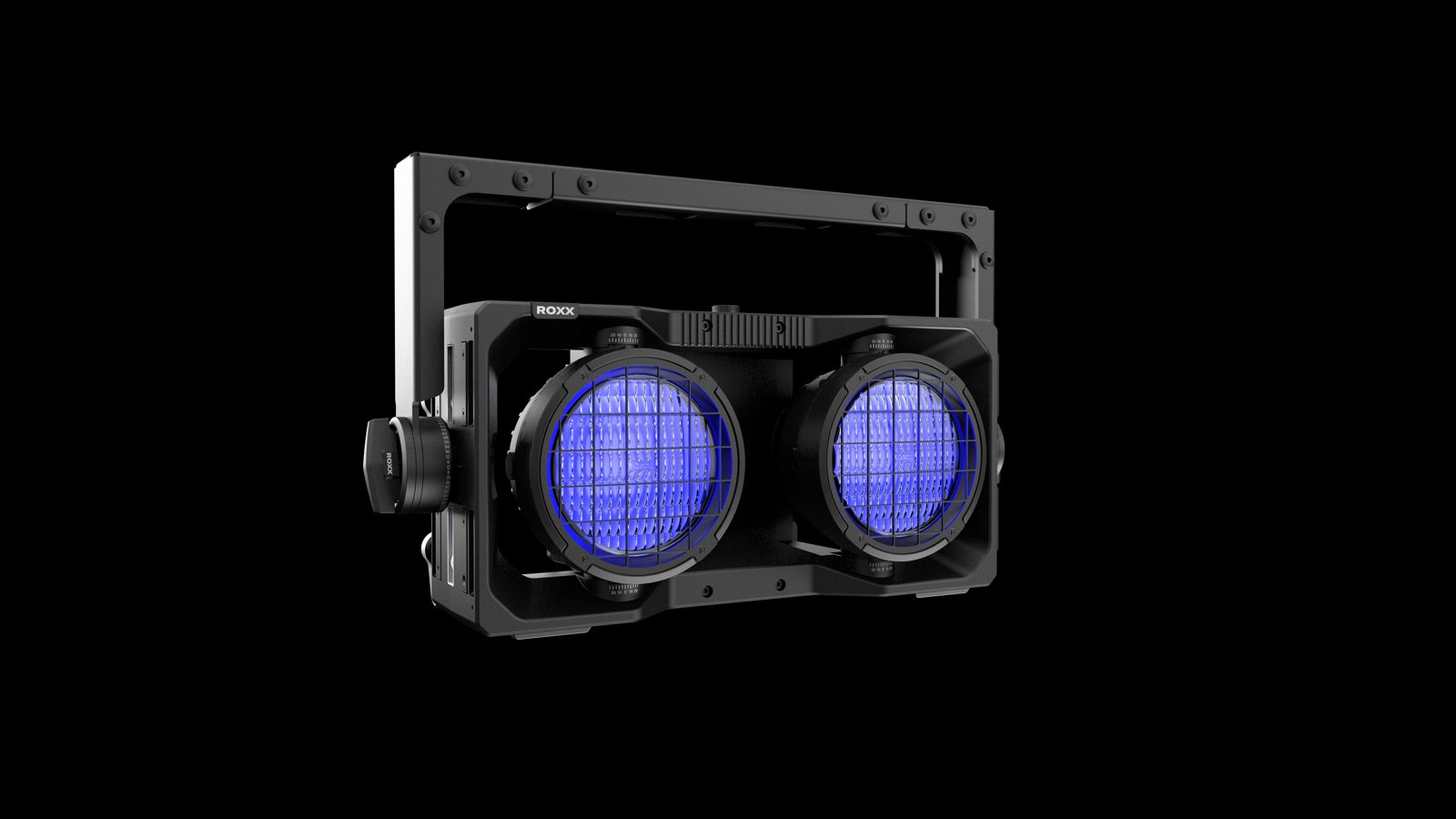

Built on what users asked for: more output and less weight. The B2 EVO houses 2×750W RGBA+WW LED units for up to 40,000 lumens at 3,000K, while the B4 EVO doubles up to 4×750W units for up to 80,000 lumens — up to 350% more power and up to 20% less weight than the previous generation.

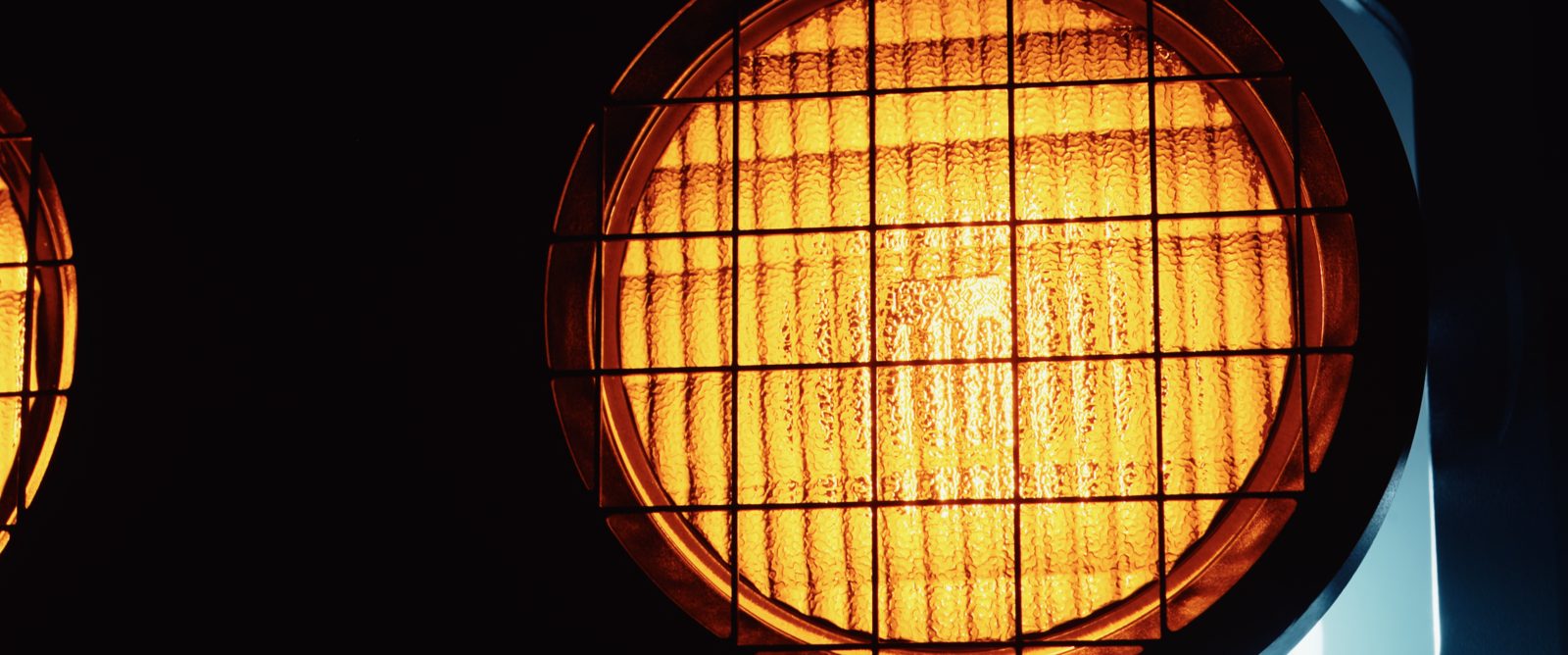

A DWE-inspired glass lens pairs with a patent-pending dual-zone LED array — an amber core surrounded by an RGB section — that recreates a tungsten filament, down to its natural hot spot at low power and during start-up and shutdown.

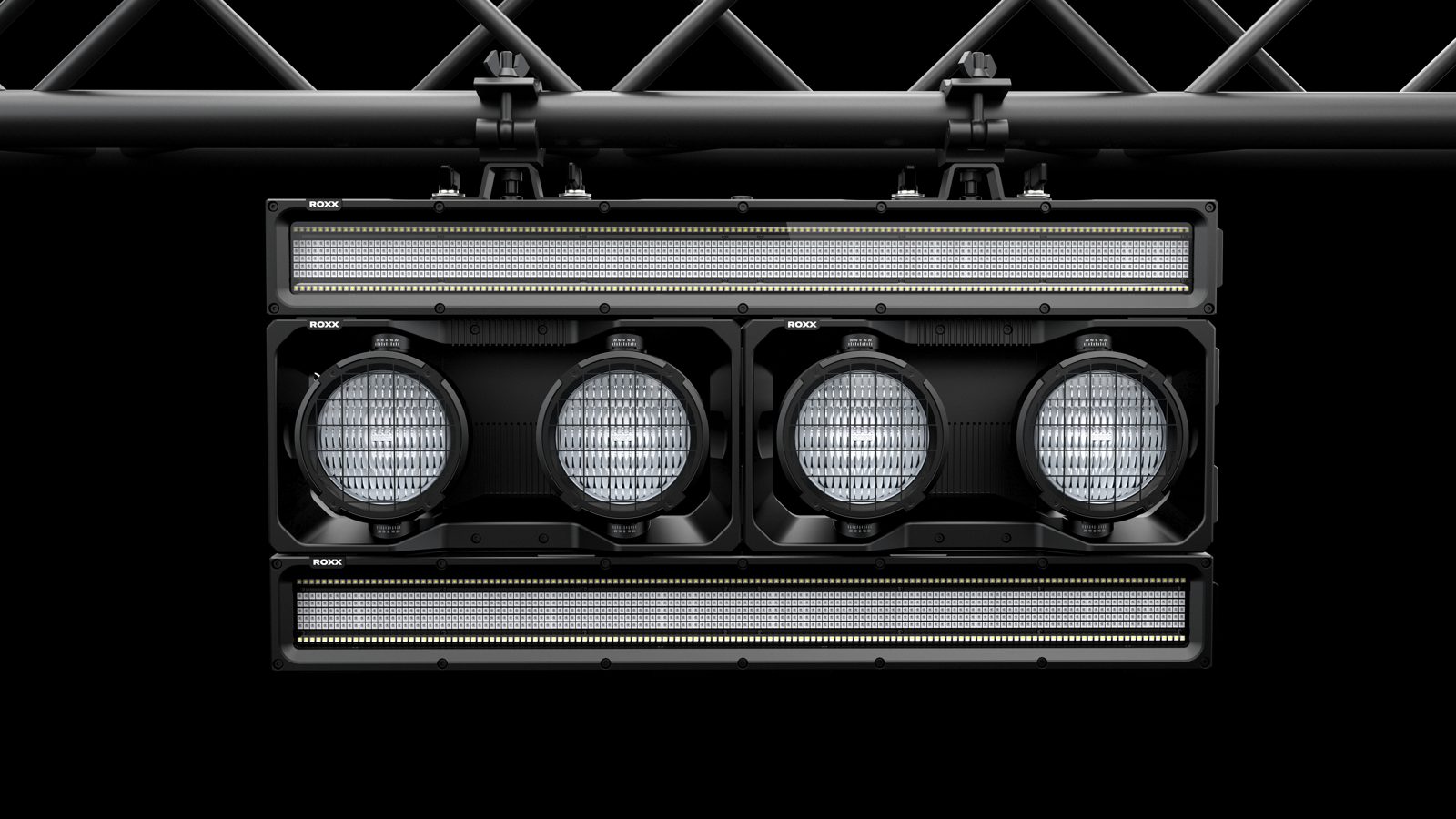

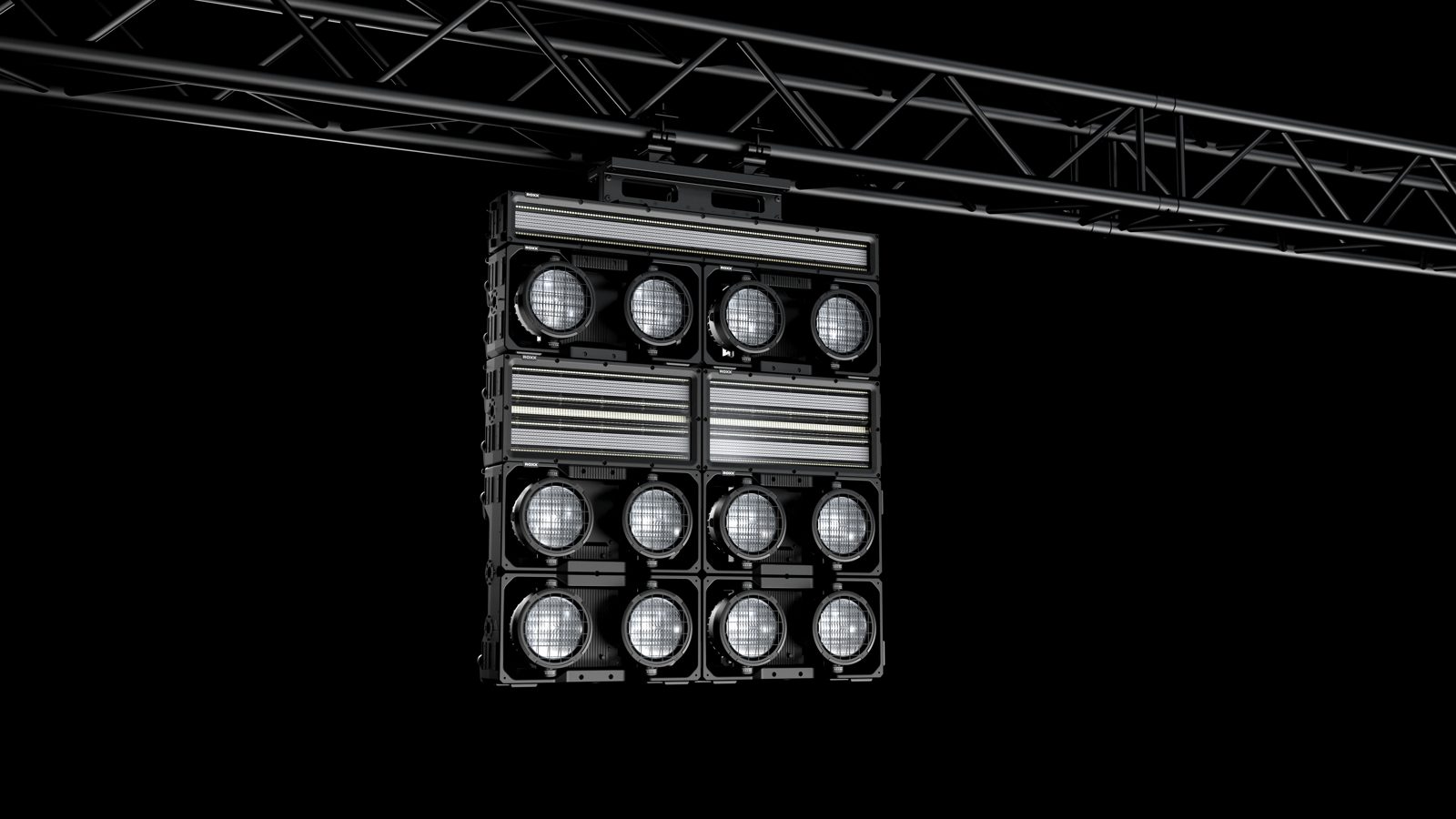

Evolution doesn't mean starting over: in Legacy Mode, EVO fixtures run together with Cluster B2 FC and B4 FC on one rig, with the same parts and accessories. Expand your inventory instead of replacing it.
Main features:
- Up to 350% more power, up to 20% less weight than the previous generation
- Up to 40,000 lm (B2 EVO) / 80,000 lm (B4 EVO) at 3,000K
- Patent-pending dual-zone RGBA+WW LED array with tungsten filament effect
- DWE-inspired glass lens for classic tungsten blinder character
- CRI 90, 2,000–10,000K
- Built for touring: IP66, IK08, operating from −40°C to 45°C
- Legacy Mode — runs with Cluster B2 FC and B4 FC; same parts & accessories
GALLERY
Technical specifications

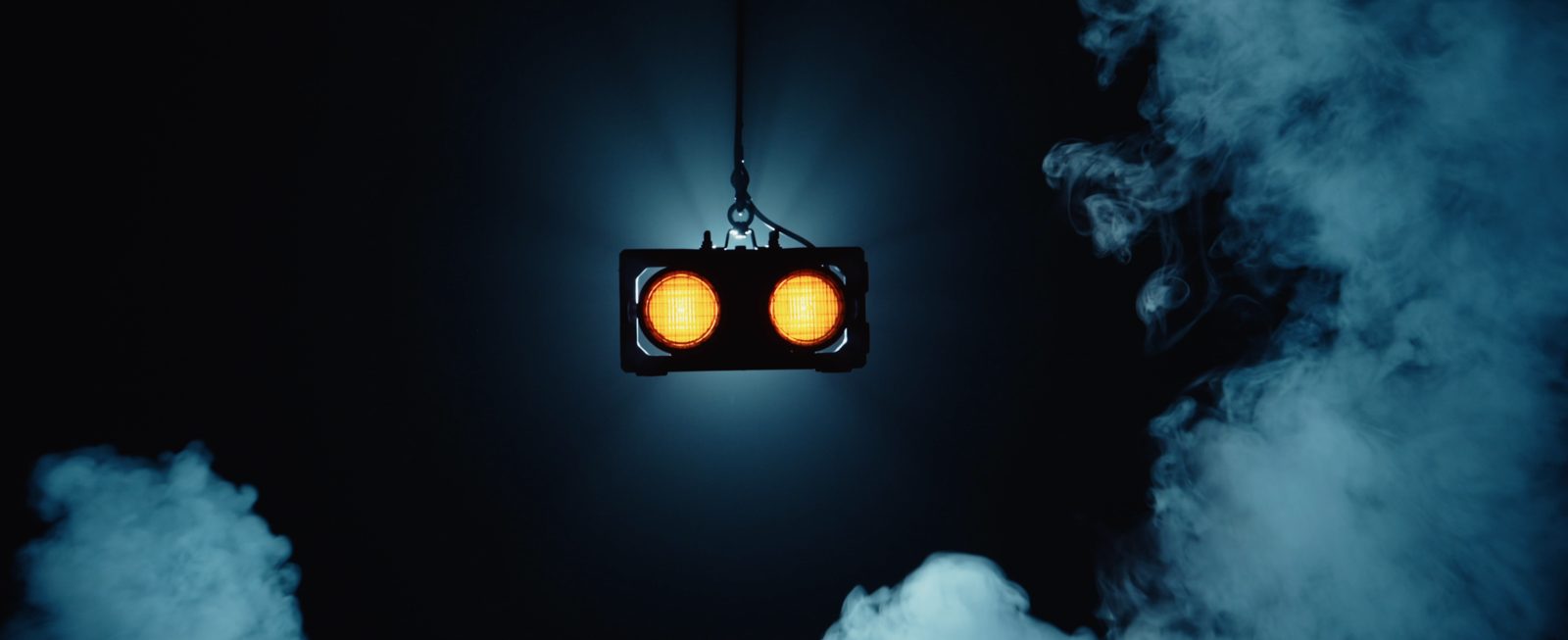

- LED: 2×750 W RGBA+WW LED units
- Output: up to 40,000 lumens @ 3,000K
- Weight: ≈8.55 kg
- Max power: 825 W @ 230V
- DMX: 19 modes, incl. DWE emulation
- IP rating: IP66
- Legacy Mode: compatible with Cluster B2 FC

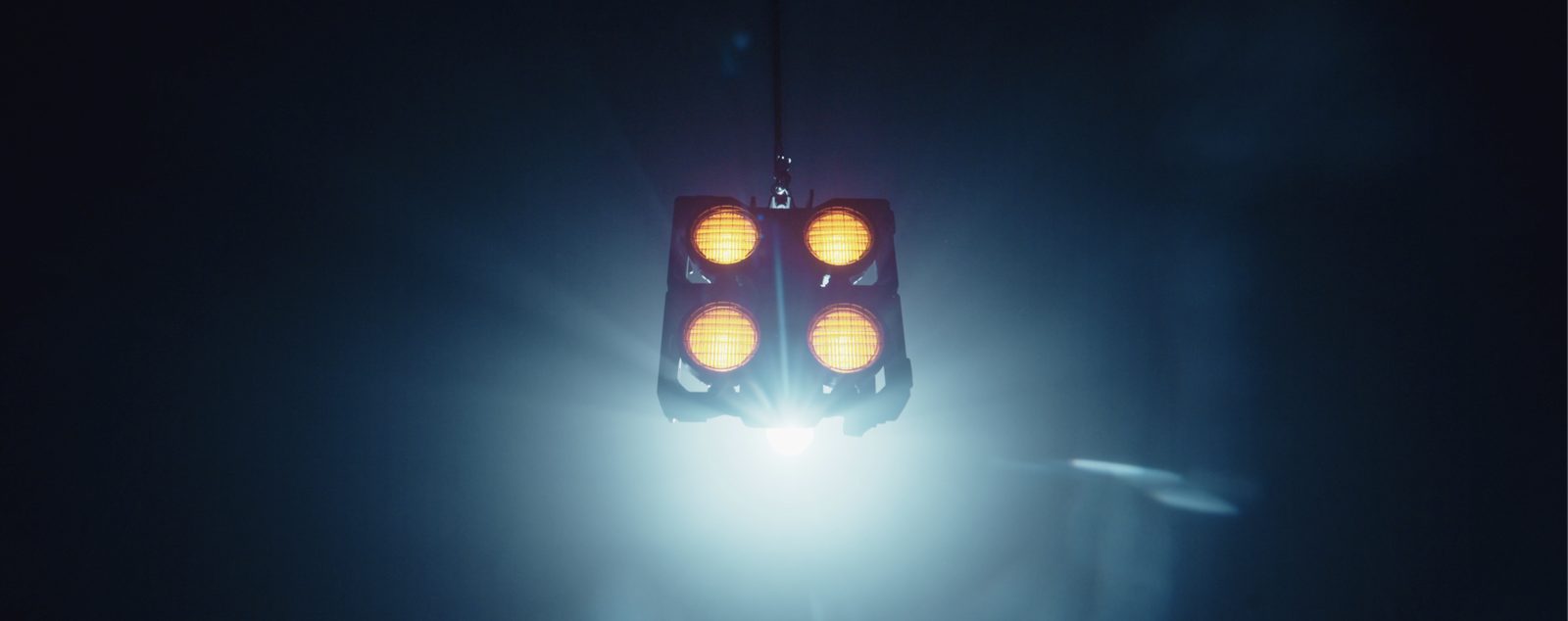

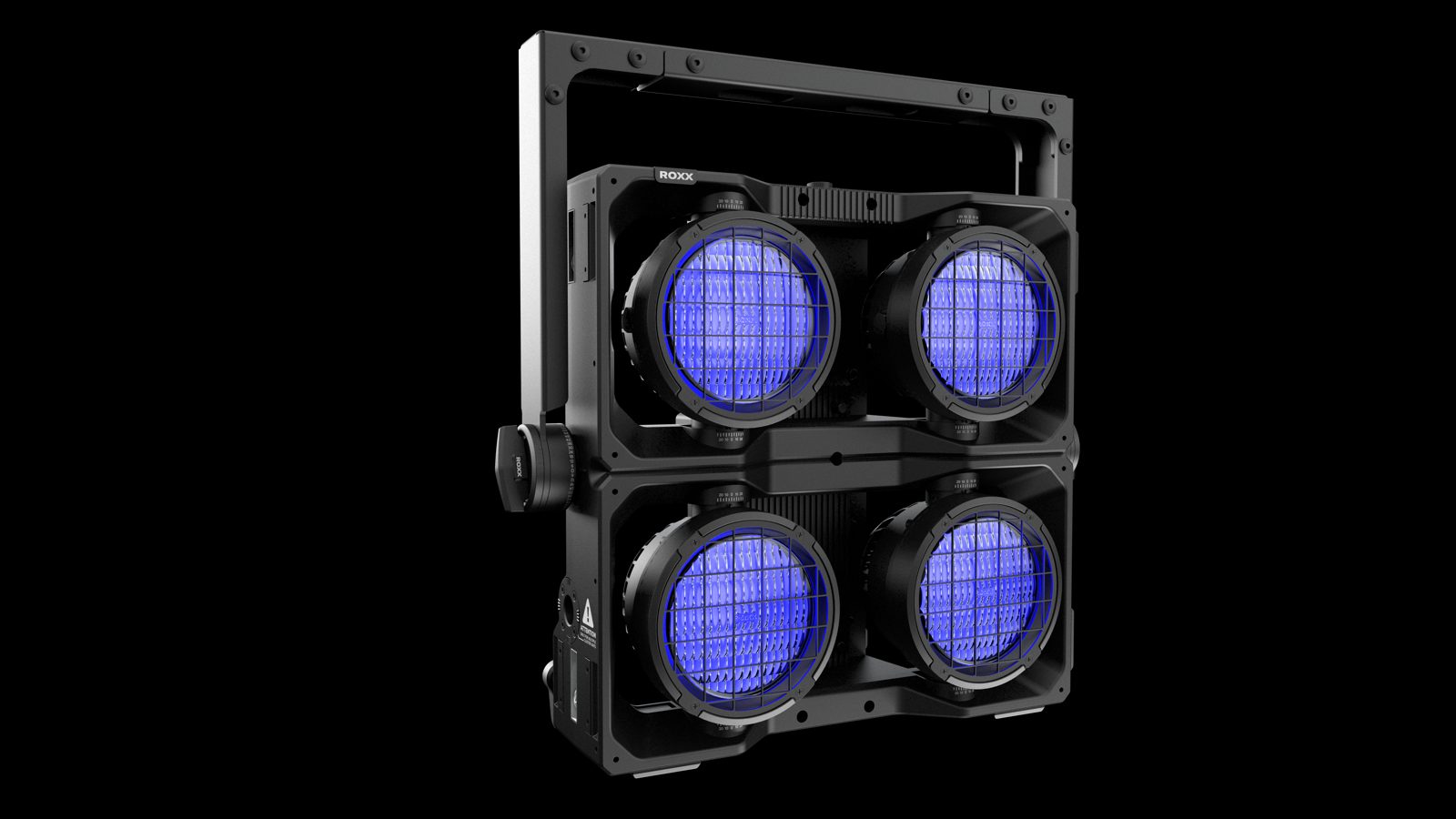

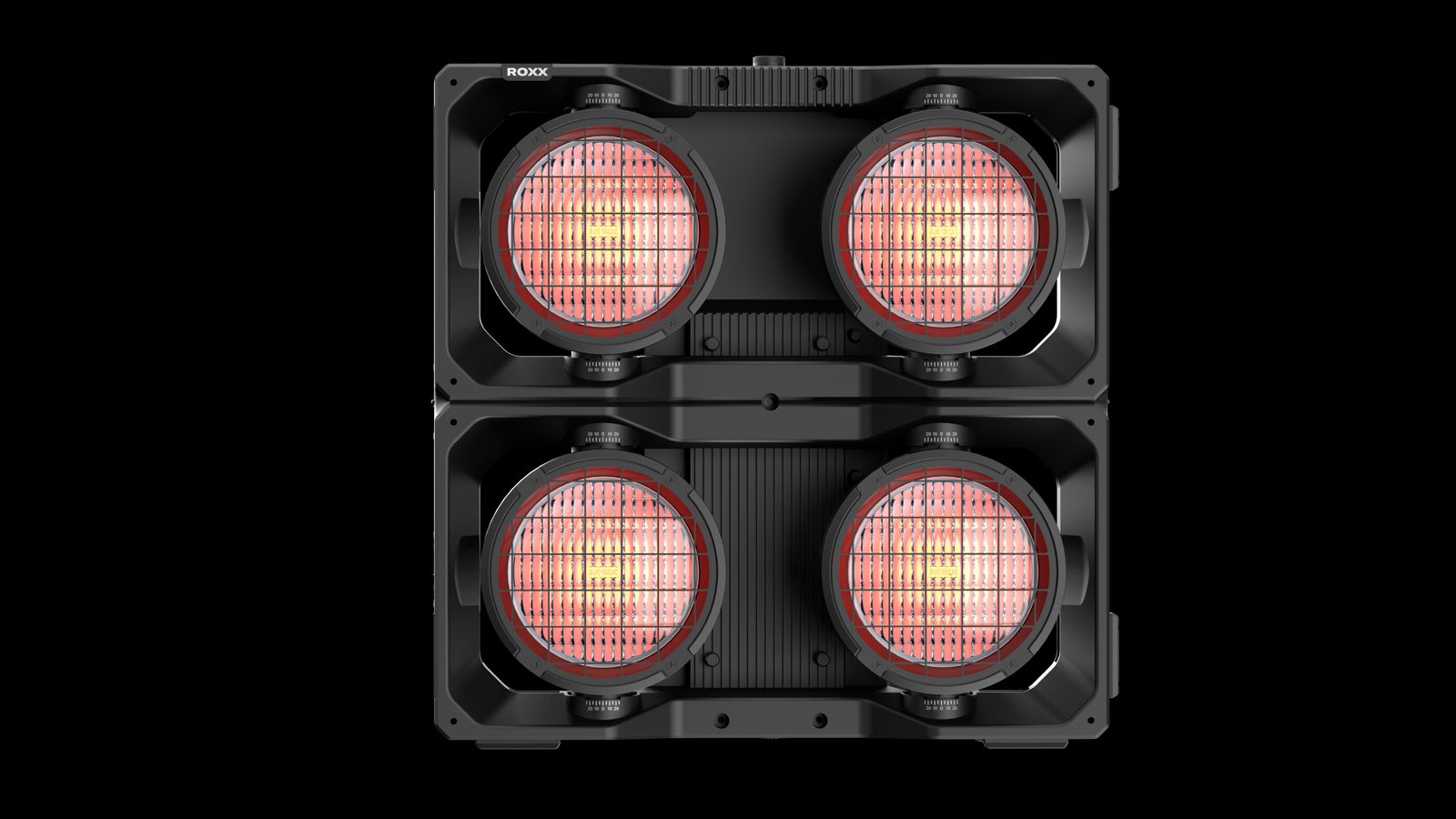

- LED: 4×750 W RGBA+WW LED units
- Output: up to 80,000 lumens @ 3,000K
- Weight: ≈14.2 kg
- Max power: 1,574 W @ 230V
- DMX: 20 modes, incl. DWE emulation
- IP rating: IP66
- Legacy Mode: compatible with Cluster B4 FC
- Lens: DWE-inspired glass lens
- LED array: patent-pending dual-zone (amber core, RGB surround), tungsten filament effect
- Up to 350% more power, up to 20% less weight than the previous generation
- CRI/Ra 90 (5,600K) · colour temperature 2,000–10,000K
- Beam 73° · field 117°
- IP66 · IK08 · operating −40°C to 45°C
- Control: DMX512A, RDM, NFC, KLSTR.tech
- Legacy Mode: runs with Cluster B2 FC / B4 FC; same parts & accessories
- LED lifetime: 50,000 h
Specifications from the ROXX preliminary datasheets (rev02), subject to change.
